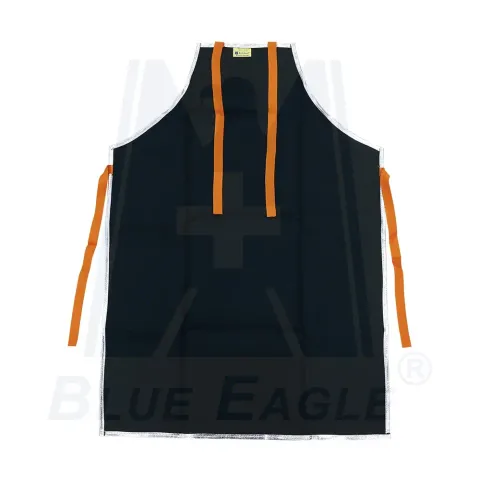

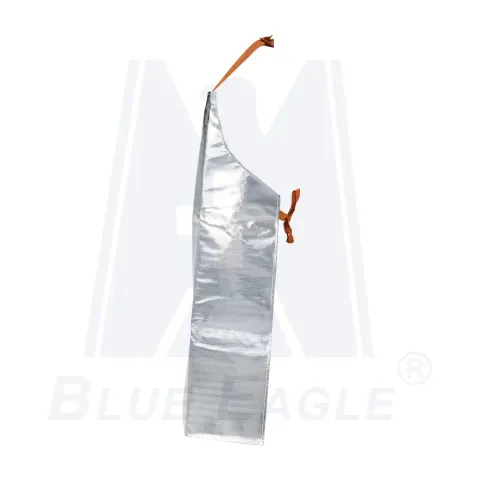

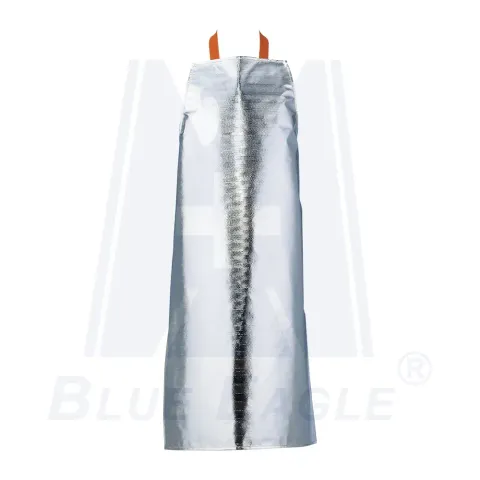

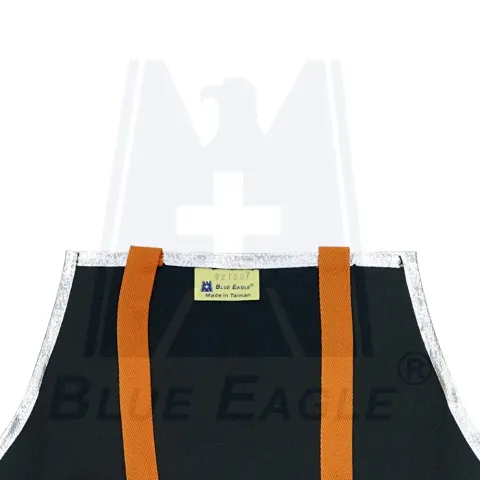

Product Name: Aluminized Apron AL7
Standards: EN 11612
Size : Width: 27″ , Length: 39″
——————————————————— Features ———————————————————
Requirements for EN ISO 11612 Convective heat test | ||
Performance | Range of HTI 24 values (s) | |
min. | max. | |
B1 | 4 | < 10.0 |
B2 | 10.0 | < 20.0 |
B3 | 20.0 | – |
Requirements for EN ISO 11612 Radiant heat test | ||
Performance | Heat transfer factor RHTI 24 (s) | |
min. | max. | |
C1 | 7.0 | < 20.0 |
C2 | 20.0 | < 50.0 |
C3 | 50.0 | < 95.0 |
C4 | 95.0 | – |
Requirements for EN ISO 11612 Molten aluminium splash | ||
Performance Levels | Molten aluminium splash (g) | |
min. | max. | |
D1 | 100 | < 200 |
D2 | 200 | < 350 |
D3 | 350 | – |
Requirements for EN ISO 11612 Molten iron splash | ||
Performance Levels | Molten iron splash (g) | |
min. | max. | |
E1 | 60 | < 120 |
E2 | 120 | < 200 |
E3 | 200 | – |
Requirements for EN ISO 11612 Contact heat | ||
Performance Levels | Threshold time (s) | |
min. | max. | |
F1 | 5.0 | < 10.0 |
F2 | 10.0 | < 15.0 |
F3 | 15.0 | – |
